KOSUN Mud Separation Shale Shaker: The Ultimate Solution for Efficient Solids Control


Maximize Drilling Efficiency with KOSUN’s Advanced Shale Shaker Technology

In the fast-paced world of oil and gas drilling, effective solids control is critical to maintaining operational efficiency and reducing costs. The KOSUN Mud Separation Shale Shaker stands out as a high-performance, reliable, and durable solution designed to handle even the toughest drilling conditions.

Whether you’re working on onshore, offshore, or directional drilling projects, KOSUN’s shale shaker ensures optimal separation of drill cuttings, prolonging the life of your drilling fluids and equipment.


Why Choose KOSUN Mud Separation Shale Shaker?

✅ Superior Solids Removal – High-frequency vibration efficiently separates fine and coarse particles, ensuring cleaner drilling fluid.
✅ Robust & Durable Design – Built with high-quality materials to withstand harsh drilling environments.
✅ Energy-Efficient Operation – Advanced motor technology reduces power consumption while maintaining peak performance.
✅ Easy Maintenance – Modular design allows for quick part replacement, minimizing downtime.
✅ Customizable Options – Available in various sizes and configurations to meet specific project needs.


How KOSUN Shale Shaker Enhances Your Drilling Operations

  1. Improves Drilling Fluid Quality
    • Removes harmful solids that can damage pumps, bits, and other equipment.
    • Maintains optimal mud properties for smoother, faster drilling.
  2. Reduces Operational Costs
    • Extends the lifespan of drilling fluids, cutting down on mud replacement costs.
    • Lowers maintenance expenses by preventing equipment wear and tear.
  3. Boosts Environmental Compliance
    • Minimizes waste generation, helping you meet strict environmental regulations.
    • Supports sustainable drilling practices with efficient solids control.

Applications of KOSUN Mud Separation Shale Shaker

  • Oil & Gas Drilling – Ideal for both conventional and unconventional drilling operations.
  • Horizontal Directional Drilling (HDD) – Ensures clean drilling fluids for extended borehole stability.
  • Geothermal & Water Well Drilling – Handles high-temperature and high-pressure conditions with ease.
  • Offshore Rigs – Compact and rugged design perfect for space-constrained environments.

Upgrade Your Solids Control System Today!

Don’t let inefficient solids control slow down your drilling progress. The KOSUN Mud Separation Shale Shaker delivers unmatched performance, reliability, and cost savings—making it the top choice for modern drilling operations.

🚀 Ready to Optimize Your Drilling Efficiency?
👉 Contact KOSUN today to find the perfect shale shaker for your needs!

What Is the G Force of a Shale Shaker? – KOSUN’s Advanced Vibration Technology

In drilling operations, shale shakers are the first and most critical stage of solids control, separating drill cuttings from drilling fluid. A key factor affecting their performance is G force (gravitational force), which determines how efficiently the shaker removes solids.

KOSUN, a leading manufacturer odrilling fluid solids control equipment, designs high-performance shale shakers with optimized G forces to maximize separation efficiency while ensuring equipment durability.


Understanding G Force in Shale Shakers

What Is G Force?

  • G force (or “G-factor”) measures the acceleration of the shale shaker’s vibrating motion relative to Earth’s gravity (1G = 9.81 m/s²).
  • A higher G force means stronger vibration, improving solids separation but also increasing wear on the shaker.

Typical G Force Range

  • Most shale shakers operate between 4G to 7G.
  • KOSUN’s shale shakers are engineered for adjustable G force, allowing operators to balance separation efficiency and machine longevity.

Why G Force Matters in Solids Control

  1. Better Separation Efficiency
    • Higher G forces (5G-7G) improve fine solids removal, crucial for weighted mud systems.
    • Lower G forces (4G-5G) are suitable for delicate screens or lighter drilling fluids.
  2. Screen Life & Equipment Durability
    • Excessive G force can damage screens and increase maintenance costs.
    • KOSUN shakers use precise vibration control to extend screen life while maintaining performance.
  3. Adaptability to Drilling Conditions
    • Different formations (e.g., hard rock vs. soft clay) may require varying G forces.
    • KOSUN’s variable-frequency drives (VFDs) allow real-time G force adjustments.

KOSUN’s Shale Shaker Technology

Key Features

✔ Adjustable G Force (4G-7G) – Optimized for different drilling conditions.
✔ Durable Screen Design – Reduces wear even at high G forces.
✔ VFD Control – Allows operators to fine-tune vibration intensity.
✔ Low Maintenance – Robust construction for long-term reliability.

Applications

  • Oil & Gas Drilling – Efficient solids removal for both land and offshore rigs.
  • HDD (Horizontal Directional Drilling) – Customizable G force for varying slurry types.
  • Environmental Drilling – Gentle yet effective separation for sensitive operations.

Conclusion

The G force of a shale shaker directly impacts solids control efficiency, screen life, and operational costsKOSUN’s advanced shale shakers provide optimal G force settings, ensuring high performance while minimizing downtime.

For superior solids control solutions, trust KOSUN’s expertise in drilling fluid management!

“Why Shale Shakers Are Indispensable in Modern Drilling Operations”

What Is a Shale Shaker?

A shale shaker is the primary solids control equipment in drilling operations, designed to remove large cuttings and solids from drilling fluid. Positioned at the beginning of the solids control system, it prevents coarse particles from entering downstream equipment, ensuring efficient fluid management and protecting critical components.

Core Function & Working Principle

Shale shakers operate as vibrating screens that separate solids from drilling fluid. Key features include:

  • Vibration Patterns: Linear, elliptical, or circular motions optimize separation based on drilling conditions.
  • Mesh Screens: Different mesh sizes filter varying particle sizes, with finer meshes enhancing fluid cleanliness.
  • Key Components:
    • Deck & Basket: Support and secure the screens.
    • Motor: Generates vibration for efficient separation.

Types of Shale Shakers

  • Single-Deck: Basic design for standard separation.
  • Double-Deck: Enhanced filtration with two screening layers.
  • Triple-Deck: High-capacity separation for demanding operations.

Why Shale Shakers Are Critical

  1. Cost Efficiency: Recycles drilling fluid, reducing mud consumption.
  2. Equipment Protection: Prevents abrasive wear on pumps, centrifuges, and pipelines.
  3. Wellbore Stability: Maintains optimal fluid density to avoid wellbore collapse.
  4. Environmental Compliance: Minimizes waste volume for easier disposal.

Key Selection Factors

  • Fluid Compatibility: Matches viscosity and flow characteristics.
  • Screen Durability: Composite screens offer longer life than metal alternatives.
  • Adjustable Vibration: Customizable settings for different drilling phases.
  • Ease of Maintenance: Quick screen replacement and motor access.

Common Challenges & Solutions

  • Screen Blinding: Clean screens regularly to prevent clogging.
  • Poor Vibration: Inspect motors and adjust settings as needed.
  • Wear & Tear: Replace damaged screens promptly to maintain efficiency.

Technological Advancements

  • Composite Screens: More durable and efficient than traditional metal screens.
  • Automation & Monitoring: Real-time adjustments for optimal performance.
  • Energy Efficiency: Reduced power consumption without compromising function.

Conclusion

Shale shakers are indispensable in modern drilling, ensuring efficient solids control, cost savings, and equipment longevity. Advances in screen technology and automation continue to enhance their performance. For expert guidance on selecting the right shale shaker for your operation, contact us today.

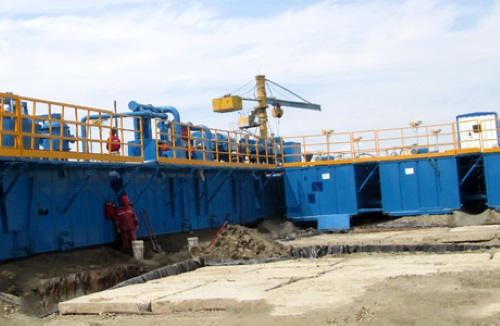

Optimize Drilling Efficiency with Advanced Solids Control Systems

Enhance Performance & Reduce Costs with Cutting-Edge Solids Control Solutions

In the oil and gas, mining, and HDD (Horizontal Directional Drilling) industries, maintaining clean drilling fluids is essential for operational efficiency and equipment longevity. A high-performance Solids Control System removes unwanted solids, improves fluid reuse, and minimizes waste—delivering significant cost savings and environmental benefits.

Why Invest in a Premium Solids Control System?

✔ Maximized Fluid Recovery – Efficiently removes drilled solids, allowing for drilling fluid reuse and reducing disposal costs.
✔ Extended Equipment Life – Protects pumps, pipes, and downhole tools from abrasive wear caused by excess solids.
✔ Regulatory Compliance – Meets environmental standards by reducing waste volumes and hazardous discharge.
✔ Improved Drilling Performance – Enhances penetration rates and reduces downtime for fluid maintenance.

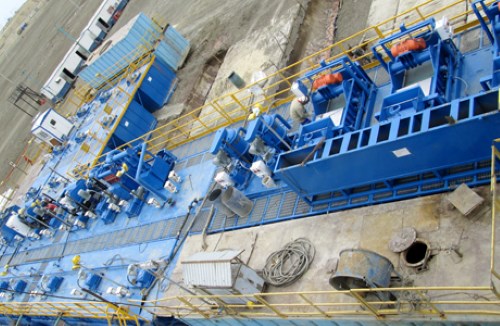

Key Components of a Solids Control System

  • Shale Shakers – Primary solids removal with high-G force separation.
  • Desanders & Desilters – Fine particle removal for cleaner fluids.
  • Decanter Centrifuges – Ultra-fine solids separation and dewatering.
  • Mud Cleaners & Degassers – Complete fluid purification for optimal performance.

Applications Across Industries

  • Oil & Gas Drilling (Onshore & Offshore)
  • Geothermal & Water Well Drilling
  • Tunneling & HDD Operations
  • Mineral Processing & Waste Management

Upgrade Your Solids Control System Today!

Our advanced Solids Control Systems are engineered for reliability, efficiency, and cost-effectiveness. Whether you need a compact unit for mobile rigs or a full-scale setup for large-scale drilling, we provide customized solutions to meet your needs.

Contact us now to improve your drilling fluid management and boost productivity!

Let’s connect, and we create big deals, on the basis of trust and broader benefits.
📧 Email: Sales@adkosun.com | 📱 WhatsApp: +86 13379250593
🌐 Visit us: www.kosun.com/ www.kosuneco.com


#SolidsControl #DrillingFluids #OilAndGas #HDD #Mining #RigEquipment #FluidRecycling #DrillingEfficiency #WasteManagement

Shale Shaker Screen: The Key to Efficient Drilling Fluid Management

In the oil and gas drilling industry, effective solids control is critical for smooth operations. The shale shaker screen plays a vital role in separating drill cuttings from drilling fluid, ensuring optimal performance and cost savings. Choosing the right screen and maintaining it properly can significantly enhance drilling efficiency.

In this guide, we’ll explore the importance of shale shaker screens, how they work, and best practices for maximizing their lifespan and performance.

What Is a Shale Shaker Screen?

shale shaker screen is a mesh filter installed on shale shakers—the primary solids control equipment in drilling rigs. Its main function is to:
✔ Remove drill cuttings and large solids from drilling mud
✔ Maintain fluid properties for better lubrication and cooling
✔ Reduce wear and tear on downstream equipment

Types of Shale Shaker Screens

Different drilling conditions require specific screen types:

1. Flat-Backed Screens

  • Best for fine filtration
  • Ideal for water-based muds
  • Cost-effective and widely used

2. Pyramid Screens

  • Designed for high-flow conditions
  • Reduces blinding (clogging)
  • Suitable for oil-based muds

3. Hook-Strip Screens

  • Easy to install and replace
  • Durable for heavy-duty operations
  • Compatible with most shale shaker models

How to Choose the Right Shale Shaker Screen?

Selecting the best screen depends on:
🔹 Mesh Size – Fine (API 200+) for sticky mud, coarse (API 20-50) for fast drilling
🔹 Material – Stainless steel for corrosion resistance, composite for durability
🔹 Drilling Conditions – High-temperature wells need heat-resistant screens

Best Practices for Extending Shale Shaker Screen Life

To maximize efficiency and reduce downtime:
✔ Inspect screens regularly for tears or clogging
✔ Adjust vibration settings to prevent premature wear
✔ Clean screens properly after each use
✔ Store spares correctly to avoid damage

Why Invest in High-Quality Shale Shaker Screens?

✅ Improved Solids Control – Cleaner drilling fluid means better rig performance
✅ Reduced Maintenance Costs – Fewer screen replacements mean lower expenses
✅ Enhanced Drilling Efficiency – Minimizes downtime and boosts productivity

Conclusion

A high-performance shale shaker screen is essential for effective solids control in drilling operations. By selecting the right type and following proper maintenance, you can optimize fluid management and reduce operational costs.

Looking for premium shale shaker screens? Contact us today for durable, high-efficiency screens tailored to your drilling needs!

The Role of KOSUN Shale Shaker in Modern Drilling Operations

The KOSUN Shale Shaker is an essential piece of equipment in the oil and gas industry, playing a critical role in the solids control process during drilling operations. As the first line of defense in a drilling fluid system, the shale shaker is responsible for separating large cuttings and solids from the drilling fluid, ensuring that the fluid can be reused efficiently. This not only improves drilling performance but also reduces operational costs and environmental impact.

KOSUN’s shale shaker stands out due to its advanced design and high-performance capabilities. Equipped with high-quality screens and powerful vibration motors, it can handle high flow rates and varying particle sizes with ease. Its robust construction ensures durability, even in the most demanding drilling environments, whether onshore or offshore.

One of the key advantages of the KOSUN Shale Shaker is its adaptability. It can be customized to meet the specific needs of different drilling projects, making it a versatile tool for contractors. Additionally, its user-friendly design simplifies maintenance and operation, reducing downtime and increasing productivity.

By integrating the KOSUN Shale Shaker into their solids control systems, drilling companies can achieve cleaner drilling fluid, extend the life of their equipment, and minimize waste disposal costs. This makes it an indispensable asset for any drilling operation aiming for efficiency and sustainability.

Types and advantages of drilling shale shaker

A drilling shale shaker is a vital piece of equipment in the drilling process. It is used to separate solids and fluids that come out of the wellbore during drilling operations. The drilling shale shaker is a vibrating screen that utilizes a mesh to filter out the cuttings from drilling fluids. In this article, we will discuss the different types of drilling shale shakers and their advantages.


This image has an empty alt attribute; its file name is IMG_20170324_103943-1024x768.jpg

1, Types of Drilling Shale Shakers

  • Linear motion shale shaker:

Linear motion shale shakers are the most common type of shale shaker. They use a linear vibratory motion to separate the cuttings from the drilling fluids. The linear motion shale shaker consists of a screen bed that is inclined at an angle to allow the fluid to flow over the screen surface. The vibration causes the solids to move down the screen and the fluids to pass through the screen and flow into the mud tank.

  • Balanced elliptical motion shale shaker:

The balanced elliptical motion shale shaker is designed to provide a better separation of solids and fluids. The elliptical motion is achieved by using two vibratory motors that are synchronized to produce an elliptical motion. The elliptical motion provides a more efficient separation of solids and liquids compared to the linear motion shale shaker.

  • Dual motion shale shaker:

The dual motion shale shaker combines both linear and elliptical motion to provide better separation of solids and fluids. The dual motion shale shaker uses two vibratory motors that operate independently to produce linear and elliptical motion. The dual motion shale shaker provides better separation efficiency, reduces screen blinding, and extends screen life.

2, Advantages of Drilling Shale Shakers

  • Reduced fluid loss: The shale shaker is designed to remove solids from the drilling fluid, which reduces the amount of fluid that is lost during the drilling process. This results in significant cost savings for the drilling operation.
  • Improved drilling efficiency: The shale shaker removes the cuttings from the drilling fluid, which allows the fluid to be reused in the drilling process. This improves drilling efficiency and reduces the time required to complete the well.
  • Reduced equipment wear: The shale shaker removes the cuttings from the drilling fluid, which reduces the wear and tear on other drilling equipment such as the mud pump and mud motor.
  • Environmental protection: The shale shaker reduces the amount of drilling waste that is generated during the drilling process. This reduces the environmental impact of drilling operations.
  • Improved safety: The shale shaker improves safety on the drilling rig by reducing the risk of accidents caused by the accumulation of cuttings on the rig floor.

In conclusion, drilling shale shakers are an essential piece of equipment in the drilling process. They help to separate the cuttings from the drilling fluid, which improves drilling efficiency, reduces fluid loss, and protects the environment. The different types of shale shakers offer varying degrees of separation efficiency, and choosing the right shale shaker for the drilling operation is crucial to achieving optimal results.

Tags: drilling shale shakers, Linear motion shale shaker, Balanced elliptical motion shale shaker, Dual motion shale shaker, suppliers, manufacturers, factory, wholesale, buy, price, quotation, bulk, for sale, companies, stock, cost.

KOSUN- China Solids Control Leader&Drilling Waste Management Expert
Email: sales@adkosun.com
WhatsApp/Wechat:+86 133 7925 0593
Contact person: Lily Wang
Online consulting:
http://www.kosun.com
http://www.kosuneco.com

Protection device for decanter centrifuge

With the improvement of China’s electronic technology, the protection device on our decanter centrifuge is more and more perfect, to ensure that the centrifuge is not damaged in various emergencies. Common protection measures are:

1, main bearing temperature alarm

The temperature sensor monitors the temperature of the main bearing in real-time, and when the alarm temperature is set, the buzzer alarms, but does not stop. If no intervention is taken, when the temperature of the main bearing rises to the set maximum temperature, the PLC of the control system will execute the shutdown procedure, which can effectively protect the main bearing to prevent damage to the centrifuge.

2, machine vibration alarm

Through the vibration sensor installed on the rack, real-time monitoring of centrifuge vibration intensity, such as monitoring intensity exceeding the set value, the buzzer on the control panel will alarm, the indicator light flashes and the PLC executes the shutdown procedure.

  1. Overcurrent protection of main and auxiliary motors

There are two ways: one is to use the current relay, according to the maximum bearing capacity of the motor, and give the current relay a setting value in advance, this given setting value range can ensure the good operation of the centrifuge; The other is to detect the current of the main motor and the auxiliary motor through the frequency converter, when the load current exceeds the set value, the alarm and stop to ensure the safety of the centrifuge and personnel.

4, mechanical torque overload protection

When the transmission torque of the differential is overloaded, the rotor connected to the input shaft of the differential will press the lever to rotate, and the other end of the lever is connected with the compression spring, and the compression spring is compressed to the limit position, and the fork rotating with the lever will trigger the limit switch to cut off the power supply of the main motor so that the motor stops running. The device is equipped with a planetary gear differential, which is often used in oil drilling mud separation and other safety and explosion-proof occasions.

The working principle of the mud vibrating screen is used for structural installation, operation and maintenance

The vibrating screen is the key equipment in the solid control system, but also the first level of solid control system processing equipment, its work directly affects the control effect of the whole solid control system. During the drilling process, the drilling fluid with a large number of cuttings is returned from the well, and the role of the shaker is to separate the cuttings from the drilling fluid so that the cleaner drilling fluid enters the later stages of separation equipment.

Working principle of mud vibrating screen

The vibration force generated by the vibration motor drives the sieve bed to make linear, circular, elliptical or translational elliptical motion. The screen will play a role in filtering and screening, screening out solids such as large particles of drill cuttings, and the clean mud with fine particles will fall into the vibrating screen silo to wait for the next level of treatment. The separated large solid particles (usually more than 74 microns) are transported to the outside of the sieve bed under excitation force and discharged to the outside of the tank.

Scope of application of mud shaker

In land and offshore oil and gas drilling/CBM excavation/trenchless directional crossing/piling engineering/waste sewage, mud treatment and other projects, the mud and liquid to be treated for primary or secondary or tertiary solid control treatment. In short, it is the primary treatment of mud and solid-liquid mixtures suitable for various environments.

Factors affecting the performance of mud shaker

Drilling depth, drilling fluid performance, land environment, comprehensive drilling environment/conditions, screen selection, comprehensive performance of the object to be treated, etc.

Structural components of mud shaker

It mainly includes base, frame, screen bed, logging tank, vibration beam, vibration motor, control cabinet, screen box Angle adjustment device, screen mesh, fixed screen mesh device, etc.

Installation instructions for mud shaker

Usually the drilling fluid shaker is mounted on the first mud tank. There will be positioning blocks to help the user identify the location and distance, and the top of the tank where the vibrating screen is located will have openings the size of the sieve bed to receive the treated clean mud. The mud tank should be placed on a flat and clean ground to minimize the influence of the external environment on the performance of the shaker. In the process of transportation or transfer, it is not appropriate to install the screen on the screen box to avoid damage to the screen and affect the use of collision. The transport lock device should always be closed, and the transport lock device should be removed before use after installation to ensure the normal operation of the vibrating screen. During the installation process, read the installation instructions and follow the corresponding restrictions to complete the installation.

Safe operation of mud shakers

Make sure the transport lock is removed before use. It is not possible to repair, move, or even disassemble the motor during the use of the shaker. Follow the safety operation instructions and warning signs on the equipment to operate and maintain the equipment.

Maintenance of mud shaker

  1. According to the safety warning of the vibration motor, the motor should be regularly and reasonably maintained, such as filling lubricating oil;
  2. In the process of use, it is necessary to make careful observation and inspection of the screen. The damaged screen and the completely damaged screen should be repaired or replaced in time;
  3. After each stop using, it is necessary to clean the vibrating screen and screen, so that the screen can have a long life;
  4. Regular and planned inspection and maintenance of the overall situation of the vibrating screen, so that the use of the vibrating screen can achieve the best effect.

5, the use of drilling mud vibrating screen precautions: vibrating screen in the process of use, there may be running or screening blocking phenomenon, then we have to adjust the Angle of the screen box, but should not be too high or low.

  1. Timely observation and monitoring to ensure that the selected screen is suitable for a certain stage of mud. When the vibrating screen does not move according to the predetermined trajectory, there may be a problem with the vibration motor line. For example, if the single motor is running or the installation direction is wrong, the motor or line should be checked at this time to restore it to normal.

Shield dregs dry and wet separation equipment

The so-called dry and wet separation equipment of shield dreg is a set of real-time treatment systems of construction site dreg developed and applied according to local conditions given the limited construction site of the project, which can realize the classification, dehydration, separation, and drying of shield dreg, and reuse of inorganic raw materials and water resources on the construction site.

The dry and wet separation equipment of the shield residue treats 2500-3000 cubic meters of shield material every day, screens the sand and stone in the shield material according to the particle size, and cleans it as far as possible. The remaining mud is dehydrated by the filter press, and the mud cake is loaded without dripping water.

The application of dry and wet separation equipment of shield dreg can rationally coordinate the disposal measures of shield dreg and construction waste, and achieve reduced transportation, environmental protection treatment, and resource utilization, which can not only greatly improve the construction efficiency, but also reduce the safety production risk of the construction site, and promote the “steady, accurate and fast” of shield tunneling and the “accelerated running” of project construction.
